Replacement for Stabilus Lift-O-Mat 094870 0350N
$42.34
Replacement gas spring for the Stabilus Lift-O-Mat 094870 0350N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as CA094870.

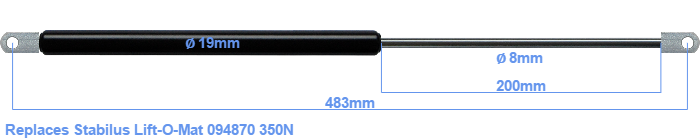

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 200 mm. The total length of this replacement gas spring is 483 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This gas spring (094870) has a force of 350 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
