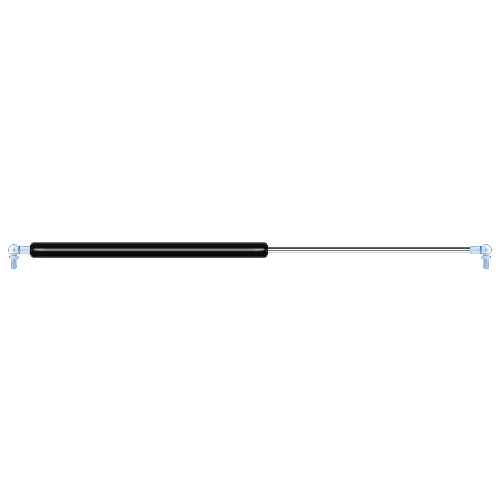

Replacement for Stabilus Lift-O-Mat 094668 0350N

$49.51




Replacement gas spring for the Stabilus Lift-O-Mat 094668 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

View this gas spring in our configurator.
This gas spring is also known as CA094668.
Stabilus Lift-O-Mat 094668
WG20
elbow ball removal

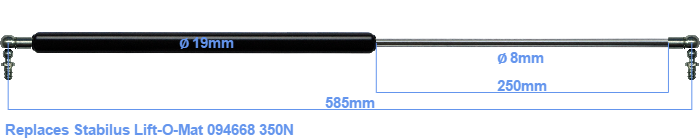

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The rod (the chrome part) is 250 mm long. In total, the length is 585 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This gas spring (094668) has a force of 350 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (350 N) and dimensions are identical to the original.
