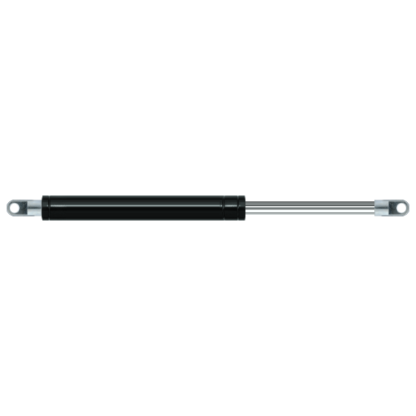

Replacement for Stabilus Lift-O-Mat 086657 2400N



Replacement gas spring for the Stabilus Lift-O-Mat 086657 2400N. The eye has a thickness of 14mm and a hole diameter of 14.1mm. Brand: Hahn.

Please note:
The diameter of the tube of this replacement gas spring is 40mm instead of 42mm.
This gas spring is also known as CA086657.
Stabilus Lift-O-Mat 086657

The diameter of the cylinder of this gas spring is 40 millimeters. The rod has a diameter of 20 mm. The chrome part is called the rod. It has a length of 200 mm. The total length of this replacement is 600 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 516 millimeter. This gas spring (086657) has a force of 2400 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
