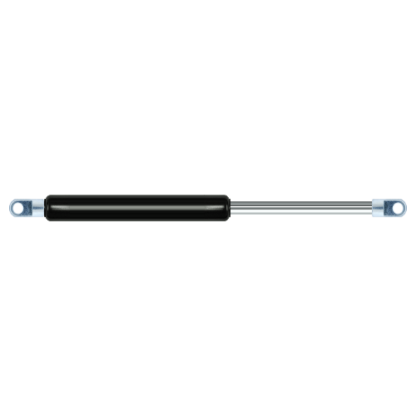

Replacement for Stabilus Lift-O-Mat 085499 1500N
Replacement gas spring for the Stabilus Lift-O-Mat 085499 1500N. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.
The diameter of the cylinder of this gas spring is 28 mm. The cross section of the rod is 14 mm. The chrome part is called the rod. It has a length of 150 mm. In total, the length is 402 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 348 mm. This replacement gas spring (085499) has a force of 1500 Newton (N). Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are close to equal.
