Replacement for Stabilus Lift-O-Mat 084557 0600N

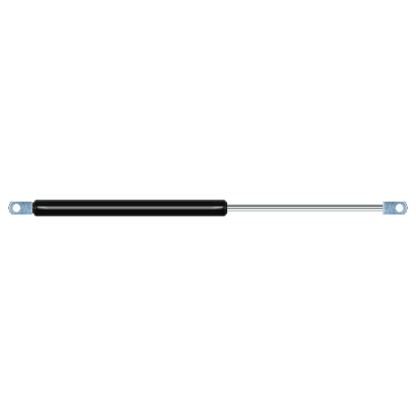

Replacement gas spring for the Stabilus Lift-O-Mat 084557 0600N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as CA084557.
The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this replacement is exactly 443 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This replacement gas spring has a force of 600 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
