Replacement for Stabilus Lift-O-Mat 083917 0400N
$49.51
Replacement gas spring for the Stabilus Lift-O-Mat 083917 0400N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA083917.

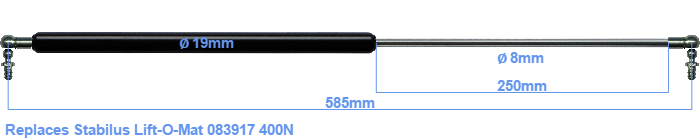

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 250 millimeter. In total, the length is 585 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). The force of this replacement gas spring is 400 Newton. This gas spring can replace a Stabilus Lift-O-Mat gas spring, but is not an orignal Stabilus Lift-O-Mat one. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
