Replacement for Stabilus Lift-O-Mat 083852 0500N
Replacement gas spring for the Stabilus Lift-O-Mat 083852 0500N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn. This gas spring is also known as CA083852.

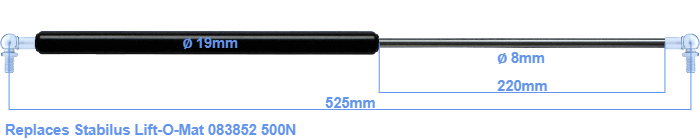

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The stroke of the gas spring is 220 millimeter. The total length of this replacement gas spring is 525 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. This gas spring (083852) has a force of 500 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (500 N) and dimensions are identical to the original.
