Replacement for Stabilus Lift-O-Mat 083119 0050N

$31.94




Replacement gas spring for the Stabilus Lift-O-Mat 083119 0050N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as CA083119.
WX22
elbow ball removal

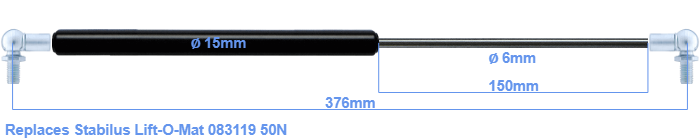

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke is 150 millimeter long. In total, the length is 376 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 332 mm. The force of this replacement is 50 Newton. This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
