Replacement for Stabilus Lift-O-Mat 083100 0350N

$31.74




Replacement gas spring for the Stabilus Lift-O-Mat 083100 0350N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA083100.
Stabilus Lift-O-Mat 083100
WX22
elbow ball removal

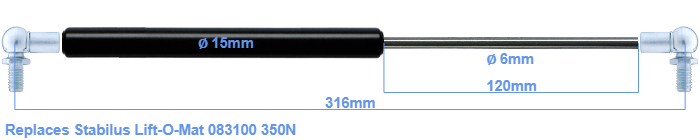

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod is 6 millimeter. The stroke is 120 millimeter long. In total, the length is 316 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). The force of this replacement is 350 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are equal.
