Replacement for Stabilus Lift-O-Mat 083097 0300N

$31.74




Replacement gas spring for the Stabilus Lift-O-Mat 083097 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA083097.
Stabilus Lift-O-Mat 083097
WX22
elbow ball removal

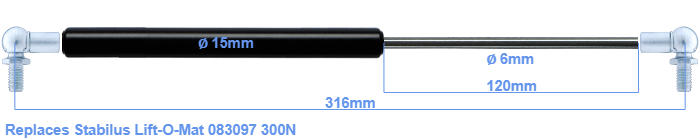

The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The rod (the chrome part) is 120 mm long. The total length of this replacement gas spring is 316 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 272 mm. The force of this replacement is 300 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
