Replacement for Stabilus Lift-O-Mat 083089 0250N

$31.74




Replacement gas spring for the Stabilus Lift-O-Mat 083089 0250N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA083089.
Stabilus Lift-O-Mat 083089
WX22
elbow ball removal

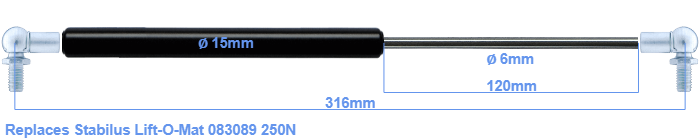

The diameter of the black cylinder of this gas spring is 15 millimeter. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 120 mm. The total length of this gas strut is 316 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). This replacement gas spring has a force of 250 Newton. This is not an original gas spring from Stabilus Lift-O-Mat, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas springs has the brand Stabilus Industry Line. The force (250 N) and dimensions are identical to the original.
