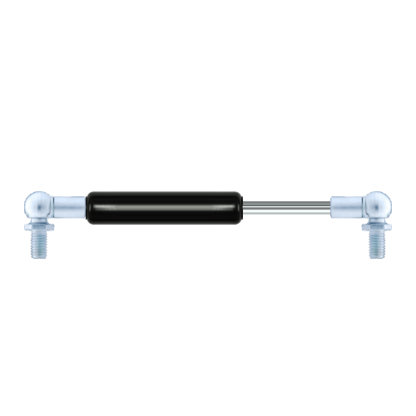

Replacement for Stabilus Lift-O-Mat 082759 0150N

$38.05




Replacement gas spring for the Stabilus Lift-O-Mat 082759 0150N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as CA082759.
Stabilus Lift-O-Mat 082759
WX22
elbow ball removal

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The stroke (the retracting part) has a length of 40 mm. The total length of this replacement gas spring is 156 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 112 mm long (thread to thread). The force of this replacement is 150 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are equal.
