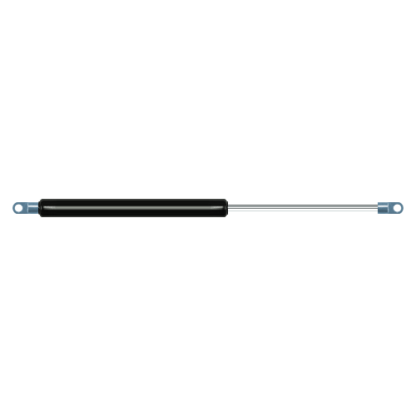

Replacement for Stabilus Lift-O-Mat 082635 0350N



Replacement gas spring for the Stabilus Lift-O-Mat 082635 0350N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as CA082635.
Stabilus Lift-O-Mat 082635

The diameter of the cylinder of this gas spring is 15 mm. The cross section of the rod is 6 mm. The rod (the chrome part) is 120 mm long. The total length of this replacement is exactly 304 mm. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 272 mm long (thread to thread). This gas spring (082635) has a force of 350 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
