Replacement for Stabilus Lift-O-Mat 082317 0350N
Replacement gas spring for the Stabilus Lift-O-Mat 082317 0350N. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as CA082317.

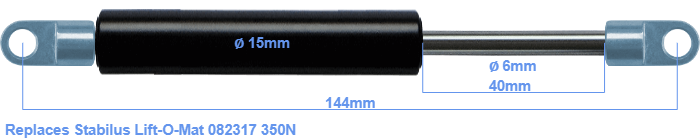

The diameter of the cylinder of this gas spring is 15 millimeters. The rod has a diameter of 6 mm. The chrome part is called the rod. It has a length of 40 mm. In total, the length is 144 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 112 mm. The force of this replacement is 350 Newton. Attention: this is not an official Stabilus Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
