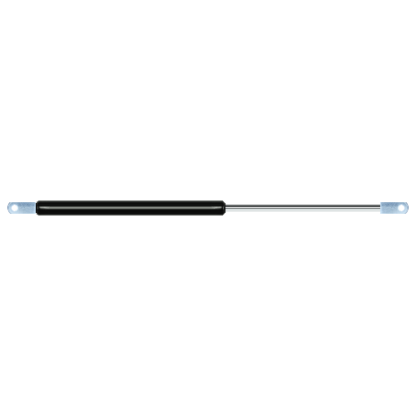

Replacement for Stabilus Lift-O-Mat 063541 0200N
$42.56
Replacement gas spring for the Stabilus Lift-O-Mat 063541 0200N. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator. This gas spring is also known as CA063541.

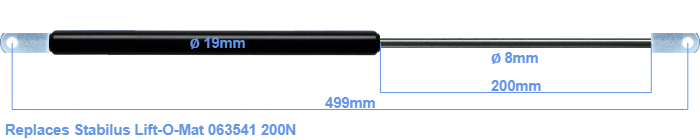

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke of the gas spring is 200 millimeter. In total, the length is 499 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This replacement gas spring (063541) has a force of 200 Newton (N). This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
