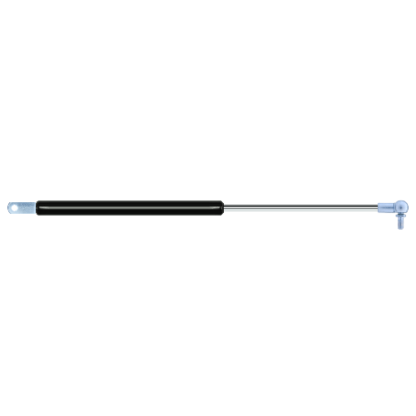

Replacement for Stabilus Lift-O-Mat 056189 0180N



Replacement gas spring for the Stabilus Lift-O-Mat 056189 0180N. Mounting part tube: The eye has a thickness of 10mm and a hole diameter of 8.1mm. Mounting part rod : This fits a (possibly already present) ball with a diameter of 13mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
Mounting part rod : The diameter of the ball of this replacement gas spring is 13mm instead of 10mm.
This gas spring is also known as CA056189.
Stabilus Lift-O-Mat 056189
elbow ball removal

The diameter of the cylinder of this gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke is 200 millimeter long. The total length of this replacement is 502 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). This replacement gas spring (056189) has a force of 180 Newton (N). This is not an official Stabilus Lift-O-Mat gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
