Replacement for Stabilus Lift-O-Mat 026803 0300N
$44.38
Replacement gas spring for the Stabilus Lift-O-Mat 026803 0300N. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
View this gas spring in our configurator. This gas spring is also known as CA026803.

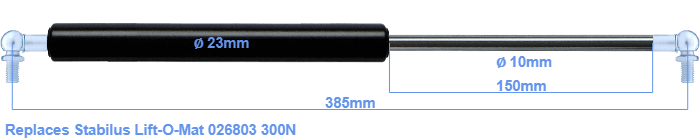

The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this gas strut is 385 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 345 mm long (thread to thread). The force of this replacement is 300 Newton. This is not an original gas spring produced by Stabilus Lift-O-Mat, but it can replace a Stabilus Lift-O-Mat gas spring. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions close to equal.
