Replacement for Novotec 588535 50-800N

$40.97




Replacement gas spring for the Novotec 588535 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


  • View this gas spring in our configurator.

    Novotec 588535
    AR19

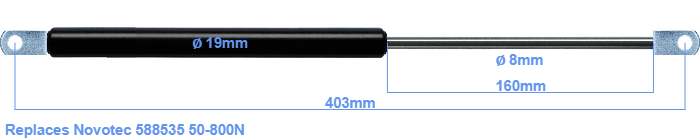

    The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 160 millimeter. The total length of this replacement gas spring is 403 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). This replacement gas spring (588535) has a force of 50-800 Newton (N). This is not an official Novotec gas spring, but a so called replacement. This is a HAHN gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
