Replacement for Novotec 512520 80-1250N

$36.07




Replacement gas spring for the Novotec 512520 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 21mm.


  • View this gas spring in our configurator.

    Novotec 512520
    AR19

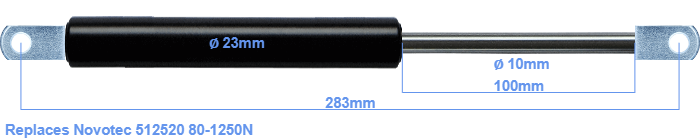

    The diameter of the cylinder of this gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement is exactly 283 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). This replacement gas spring (512520) has a force of 80-1250 Newton (N). This is not an original gas spring from Novotec, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are nearly equal.
