Replacement for Lesjöfors 9295 1200N

$41.57




Replacement gas spring for the Lesjöfors 9295 1200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9295
    AR19

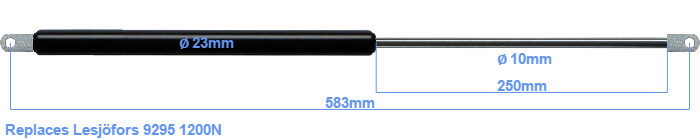

    The diameter of the cylinder of this gas spring is 23 millimeters. The cross section of the rod is 10 mm. The stroke of the gas spring is 250 millimeter. In total, the length is 583 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This gas spring (9295) has a force of 1200 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (1200 N) and dimensions are almost entirely identical to the original.
    Category:
    Replacement for Lesjöfors 9295 1200N
