Replacement for APSOvib 12.2166.3130 1300N

$56.03




Replacement gas spring for the APSOvib 12.2166.3130 1300 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.

View this gas spring in our configurator.
This gas spring is also known as AP12.2166.3130.
APSOvib 12.2166.3130
AU27

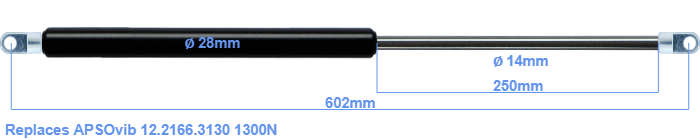

The diameter of the black cylinder of this gas spring is 28 millimeter. The cross section of the rod is 14 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement gas spring is 602 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 548 mm. This replacement gas spring (12.2166.3130) has a force of 1300 Newton (N). This is not an original gas spring from APSOvib, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost entirely equal.
