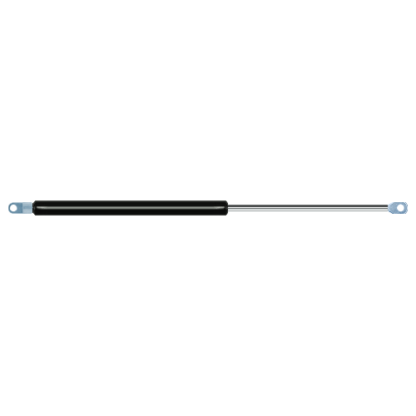

Replacement for Lesjöfors 9192 200N

$36.49




Replacement gas spring for the Lesjöfors 9192 200 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • AS24AR16_8

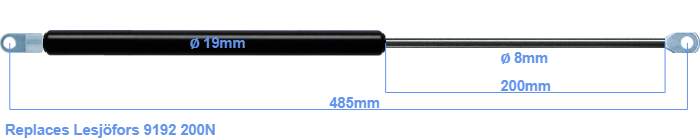

    The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The rod (the chrome part) is 200 mm long. The total length of this replacement is exactly 485 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. This replacement gas spring has a force of 200 Newton. This is not an official Lesjöfors gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
