Replacement for Lesjöfors 9105 400N

$28.94




Replacement gas spring for the Lesjöfors 9105 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Lesjöfors 9105
AX16

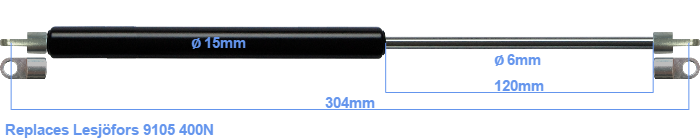

The diameter of the cylinder of this gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke (the retracting part) has a length of 120 mm. In total, the length is 304 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. The force of this replacement is 400 Newton. This is not an official Lesjöfors gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
