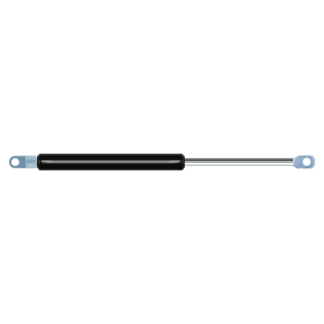

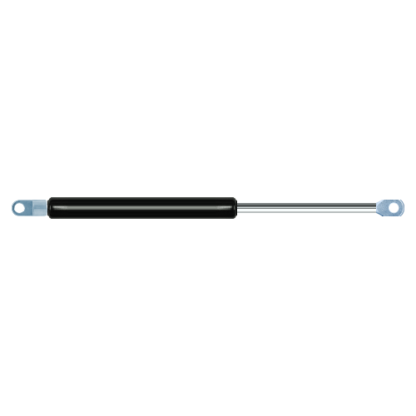

Replacement for Lesjöfors 9163 500N

$31.71




Replacement gas spring for the Lesjöfors 9163 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • Lesjöfors 9163
    AS24AR16_8


    This gas spring has a cylinder diameter of 19 mm. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this replacement is 325 millimeter. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 285 mm long (thread to thread). This replacement gas spring has a force of 500 Newton. Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas springs has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
