Replacement for Lesjöfors 9107 100N

$29.14




Replacement gas spring for the Lesjöfors 9107 100 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Hahn.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

AX16

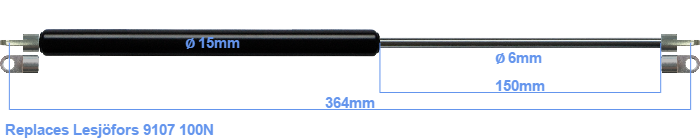

The diameter of the cylinder of this gas spring is 15 millimeters. The cross section of the rod is 6 mm. The rod (the chrome part) is 150 mm long. The total length of this gas strut is 364 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). The force of this replacement is 100 Newton. This is not an original gas spring from Lesjöfors, but a so called replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions almost equal.
