Replacement for Bansbach X3X3-42-400-883–0XX 80-1250N

$45.49




Replacement gas spring for the Bansbach X3X3-42-400-883--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 14mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach X3X3-42-400-883--0XX
    AR19

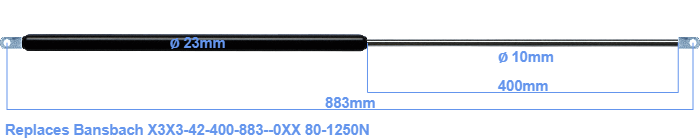

    The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 400 millimeter. The total length of this replacement gas spring is 883 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 845 millimeter. This replacement gas spring (X3X3-42-400-883--0XX) has a force of 80-1250 Newton (N). Attention: this is not an official Bansbach gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
