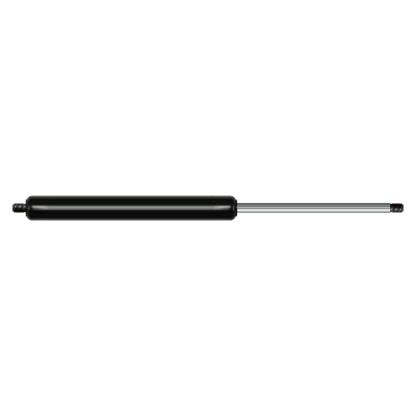

Replacement for Bansbach P0L0-40-120-288–0XX 50-800N

$29.29




Replacement gas spring for the Bansbach P0L0-40-120-288--0XX 50-800 Newton. Thread: M8. Brand: Stabilus Industry Line.
Clear

Bansbach P0L0-40-120-288--0XX

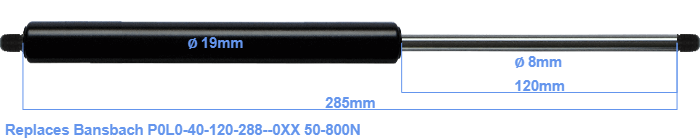

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 120 mm. In total, the length is 285 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 285 mm long (thread to thread). The force of this replacement is 50-800 Newton. Attention: this is not an official Bansbach gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
