Replacement for Bansbach L2M3-45-400-1101–0XX 150-2500N
Replacement gas spring for the Bansbach L2M3-45-400-1101--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Hahn.

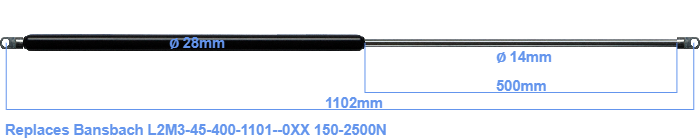

The diameter of the cylinder of this gas spring is 28 mm. The cross section of the rod is 14 mm. The rod (the chrome part) is 500 mm long. The total length of this replacement gas spring is 1102 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 1048 mm. The force of this replacement is 150-2500 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
