Replacement for Bansbach K2X3-42-150-383–0XX 80-1250N

$33.07




Replacement gas spring for the Bansbach K2X3-42-150-383--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach K2X3-42-150-383--0XX
    AR19

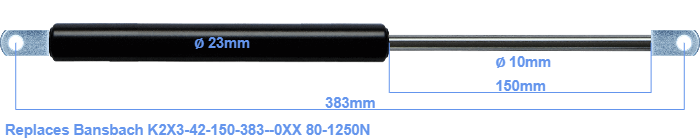

    This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke is 150 millimeter long. The total length of this replacement is exactly 383 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 345 millimeter. The force of this replacement gas spring is 80-1250 Newton. This is not an original gas spring produced by Bansbach, but it can replace a Bansbach gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. The force (80-1250 N) and dimensions are close to identical to the original.
