Replacement for Bansbach K2J2-42-350-783–0XX 80-1250N

$41.85




Replacement gas spring for the Bansbach K2J2-42-350-783--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 12mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    AR19

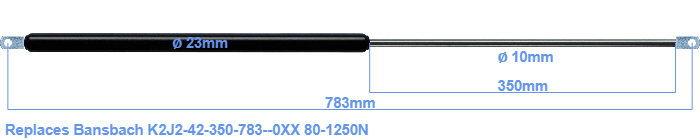

    The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod totals 10 mm. The rod (the chrome part) is 350 mm long. The total length of this replacement is 783 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 745 mm. The force of this replacement is 80-1250 Newton. This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
