Replacement for Bansbach J2X3-42-400-883–0XX 80-1250N

$45.49




Replacement gas spring for the Bansbach J2X3-42-400-883--0XX 80-1250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 14mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 8mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • Clear

    Bansbach J2X3-42-400-883--0XX
    AR19

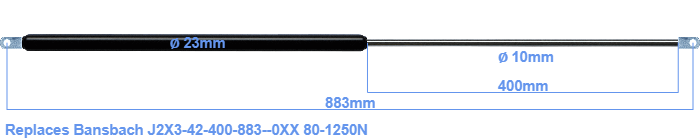

    The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The chrome part is called the rod. It has a length of 400 mm. The total length of this replacement is exactly 883 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 845 mm long (thread to thread). The force of this replacement is 80-1250 Newton. This is not an official Bansbach gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
