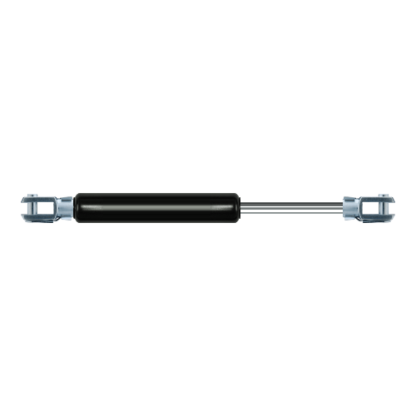

Replacement for Bansbach G5G5-46-50-178–0XX 30-450N

$36.34




Replacement gas spring for the Bansbach G5G5-46-50-178--0XX 30-450 Newton. The fork has a hole diameter of 5.1mm. Brand: HAHN, a Stabilus company.

Please note:
This replacement gas spring is 6mm shorter than the original gas spring. In general, this will not cause any problems.

View this gas spring in our configurator.

Bansbach G5G5-46-50-178--0XX
GA20

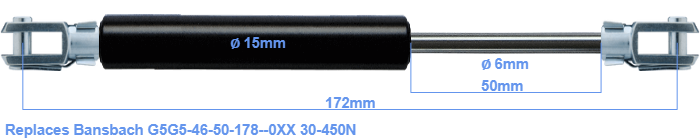

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod is 6 millimeter. The rod (the chrome part) is 50 mm long. The total length of this replacement is exactly 172 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 132 mm long (thread to thread). This replacement gas spring (G5G5-46-50-178--0XX) has a force of 30-450 Newton (N). This gas spring can replace a Bansbach gas spring, but is not an orignal Bansbach one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions almost entirely equal.
