Replacement for Bansbach B2M3-45-250-601–0XX 150-2500N

$56.03



Replacement gas spring for the Bansbach B2M3-45-250-601--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: HAHN, a Stabilus company.

Please note:

Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 8mm.

Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Force

Choose an option150 Newton | 33.7 lbs.200 Newton | 45.0 lbs.250 Newton | 56.2 lbs.300 Newton | 67.4 lbs.350 Newton | 78.7 lbs.400 Newton | 89.9 lbs.450 Newton | 101.2 lbs.500 Newton | 112.4 lbs.550 Newton | 123.6 lbs.600 Newton | 134.9 lbs.650 Newton | 146.1 lbs.700 Newton | 157.4 lbs.750 Newton | 168.6 lbs.800 Newton | 179.8 lbs.850 Newton | 191.1 lbs.900 Newton | 202.3 lbs.950 Newton | 213.6 lbs.1000 Newton | 224.8 lbs.1050 Newton | 236.0 lbs.1100 Newton | 247.3 lbs.1150 Newton | 258.5 lbs.1200 Newton | 269.8 lbs.1250 Newton | 281.0 lbs.1300 Newton | 292.3 lbs.1350 Newton | 303.5 lbs.1400 Newton | 314.7 lbs.1450 Newton | 326.0 lbs.1500 Newton | 337.2 lbs.1550 Newton | 348.5 lbs.1600 Newton | 359.7 lbs.1650 Newton | 370.9 lbs.1700 Newton | 382.2 lbs.1750 Newton | 393.4 lbs.1800 Newton | 404.7 lbs.1850 Newton | 415.9 lbs.1900 Newton | 427.1 lbs.1950 Newton | 438.4 lbs.2000 Newton | 449.6 lbs.2050 Newton | 460.9 lbs.2100 Newton | 472.1 lbs.2150 Newton | 483.3 lbs.2200 Newton | 494.6 lbs.2250 Newton | 505.8 lbs.2300 Newton | 517.1 lbs.2350 Newton | 528.3 lbs.2400 Newton | 539.5 lbs.2450 Newton | 550.8 lbs.2500 Newton | 562.0 lbs.Clear

Replacement for Bansbach B2M3-45-250-601--0XX 150-2500N quantity

Add to basket

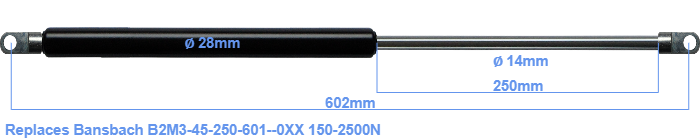

The diameter of the cylinder of this gas spring is 28 millimeters. The rod has a diameter of 14 mm. The stroke of the gas spring is 250 millimeter. The total length of this replacement is exactly 602 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 548 mm. This replacement gas spring has a force of 150-2500 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost equal.
