Replacement for Bansbach A5A5-40-100-312–0XX 50-800N
$41.72
Replacement gas spring for the Bansbach A5A5-40-100-312--0XX 50-800 Newton. The fork has a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
View this gas spring in our configurator.

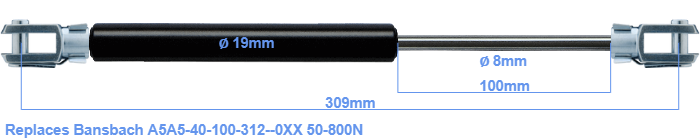

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The stroke of the gas spring is 100 millimeter. The total length of this replacement gas spring is 309 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). This gas spring (A5A5-40-100-312--0XX) has a force of 50-800 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
