Replacement for Bansbach A2A1-45-250-601–0XX 150-2500N

$48.04




Replacement gas spring for the Bansbach A2A1-45-250-601--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.
Clear

AU27_8

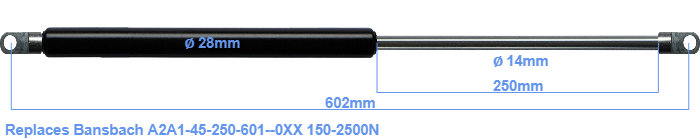

The bore of the house of this replacement gas spring is 28 mm. The cross section of the rod is 14 mm. The chrome part is called the rod. It has a length of 250 mm. The total length of this replacement is 602 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 548 mm. This replacement gas spring has a force of 150-2500 Newton. Attention: this is not an official Bansbach gas spring, but a replacement gas spring. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are close to equal.
