Replacement for Bansbach A2A1-45-150-401–0XX 150-2500N

$46.36




Replacement gas spring for the Bansbach A2A1-45-150-401--0XX 150-2500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

View this gas spring in our configurator.

Bansbach A2A1-45-150-401--0XX
AU27_8

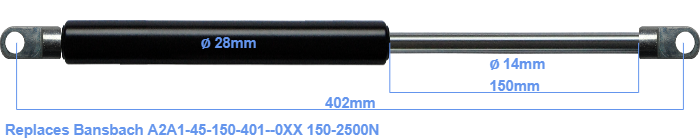

This gas spring has a cylinder diameter of 28 mm. The diameter of the rod totals 14 mm. The chrome part is called the rod. It has a length of 150 mm. The total length of this replacement is exactly 402 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 348 mm. This replacement gas spring has a force of 150-2500 Newton. This is not an original gas spring from Bansbach, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (150-2500 N) and dimensions are almost identical to the original.
