Replacement for Bansbach A1A1-50-150-384–0XX 50-800N

$33.34




Replacement gas spring for the Bansbach A1A1-50-150-384--0XX 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
Clear

Bansbach A1A1-50-150-384--0XX
AR19

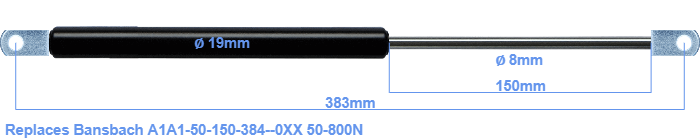

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement is 383 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 345 mm. The force of this replacement gas spring is 50-800 Newton. This is not an official Bansbach gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
