Replacement for APSOvib 12.2174.4040 400N

$41.91




Replacement gas spring for the APSOvib 12.2174.4040 400 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
This gas spring is also known as AP12.2174.4040.
WG20
elbow ball removal

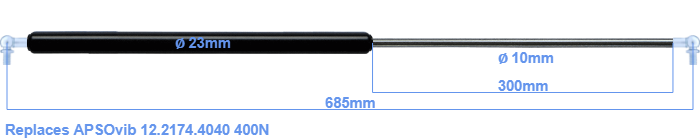

This gas spring has a cylinder diameter of 23 mm. The rod has a diameter of 10 mm. The stroke is 300 millimeter long. The total length of this replacement is exactly 685 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring has a force of 400 Newton. This is not an original gas spring from APSOvib, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The force (400 N) and dimensions are almost entirely identical to the original.
