Replacement for APSOvib 12.2174.0030 300N

$35.92




Replacement gas spring for the APSOvib 12.2174.0030 300 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
This gas spring is also known as AP12.2174.0030.
WG20
elbow ball removal

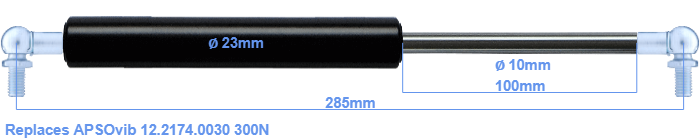

The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke of the gas spring is 100 millimeter. In total, the length is 285 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 245 mm. This replacement gas spring (12.2174.0030) has a force of 300 Newton (N). This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
