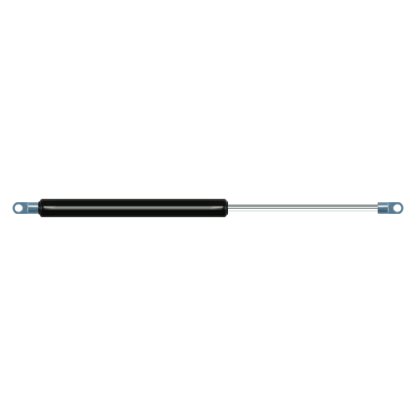

Replacement for Stobo 4100053- 200N

$28.94




Replacement gas spring for the Stobo 4100053- 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.

Stobo 4100053-
AX16


The diameter of the cylinder of this gas spring is 15 millimeters. The diameter of the rod totals 6 mm. The stroke of the gas spring is 120 millimeter. In total, the length is 304 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 272 mm. The force of this replacement gas spring is 200 Newton. This is not an original gas spring produced by Stobo, but it can replace a Stobo gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
