Replacement for APSOvib 12.2166.3140 1400N



Replacement gas spring for the APSOvib 12.2166.3140 1400 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.3140.
APSOvib 12.2166.3140

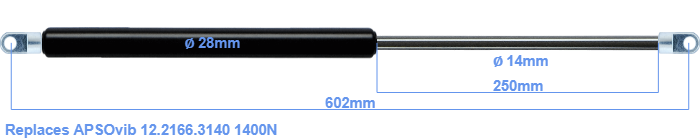

The diameter of the cylinder of this gas spring is 28 mm. The cross section of the rod is 14 mm. The stroke is 250 millimeter long. The total length of this replacement is 602 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 548 mm. This replacement gas spring (12.2166.3140) has a force of 1400 Newton (N). This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force almost equal.
