Replacement for APSOvib 12.2166.1140 1400N



Replacement gas spring for the APSOvib 12.2166.1140 1400 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.1140.
APSOvib 12.2166.1140

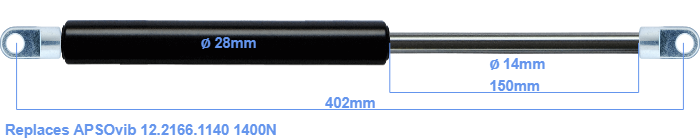

The diameter of the cylinder of this gas spring is 28 mm. The diameter of the rod totals 14 mm. The rod (the chrome part) is 150 mm long. In total, the length is 402 millimeter. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 348 mm. The force of this replacement gas spring is 1400 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions almost equal.
