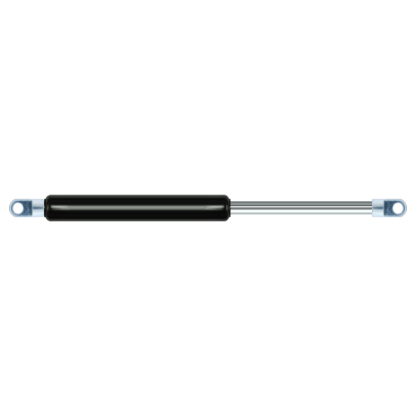

Replacement for APSOvib 12.2166.1055 550N



Replacement gas spring for the APSOvib 12.2166.1055 550 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.1055.
APSOvib 12.2166.1055

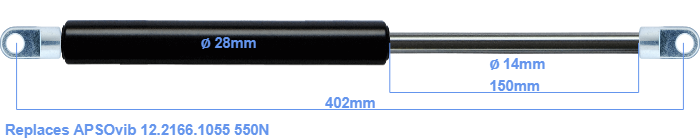

The diameter of the cylinder of this gas spring is 28 millimeters. The cross section of the rod is 14 mm. The stroke is 150 millimeter long. In total, the length is 402 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). This replacement gas spring (12.2166.1055) has a force of 550 Newton (N). This is not an official APSOvib gas spring, but a so called replacement. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
