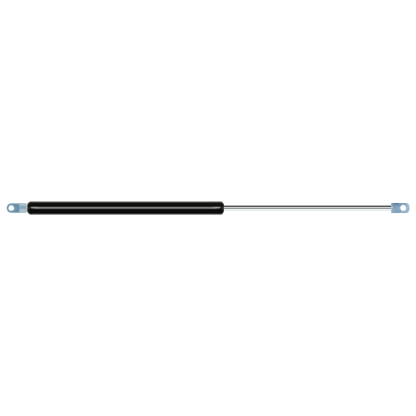

Replacement for APSOvib 12.2162.9020 200N

$37.56




Replacement gas spring for the APSOvib 12.2162.9020 200 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
This gas spring is also known as AP12.2162.9020.
APSOvib 12.2162.9020
AS24AR19

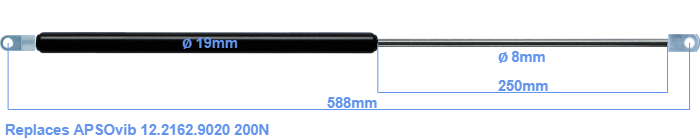

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is 588 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This replacement gas spring has a force of 200 Newton. Attention: this is not an official APSOvib gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
