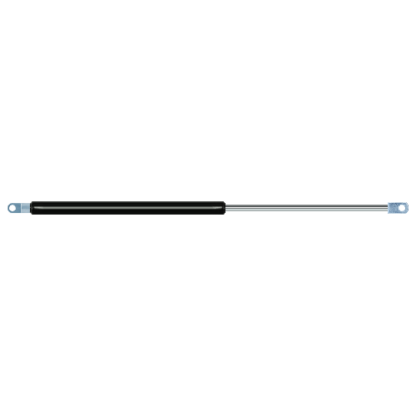

Replacement for APSOvib 12.2162.8035 350N

$56.14




Replacement gas spring for the APSOvib 12.2162.8035 350 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.

View this gas spring in our configurator.
This gas spring is also known as AP12.2162.8035.
APSOvib 12.2162.8035
AS24AR19

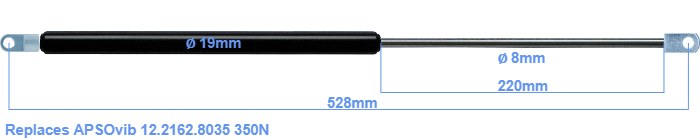

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke of the gas spring is 220 millimeter. The total length of this gas strut is 528 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. The force of this replacement is 350 Newton. This is not an original gas spring from APSOvib, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the force and dimensions close to equal.
