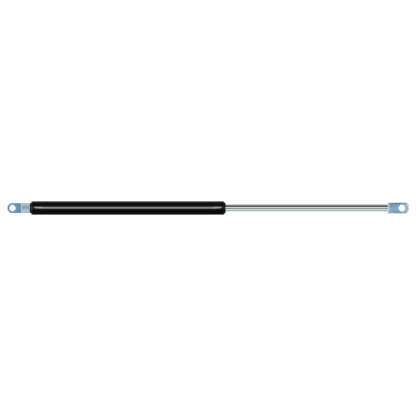

Replacement for APSOvib 12.2162.8050 500N
Replacement gas spring for the APSOvib 12.2162.8050 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as AP12.2162.8050.
This gas spring has a cylinder diameter of 19 mm. The diameter of the rod totals 8 mm. The stroke is 220 millimeter long. The total length of this replacement is exactly 528 mm. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. This replacement gas spring (12.2162.8050) has a force of 500 Newton (N). This is not an original gas spring from APSOvib, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are almost equal.
