Replacement for APSOvib 12.2162.3010 100N
$36.88
Replacement gas spring for the APSOvib 12.2162.3010 100 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.
Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
View this gas spring in our configurator. This gas spring is also known as AP12.2162.3010.

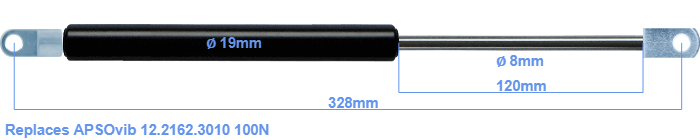

This gas spring has a cylinder diameter of 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 120 mm. The total length of this replacement gas spring is 328 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 285 mm. The force of this replacement gas spring is 100 Newton. This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are almost equal.
