Replacement for Airax Rayflex 6858864201001 100N

$32.83



Replacement gas spring for the Airax Rayflex 6858864201001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6858864201001 100N quantity

Add to basket

This gas spring is also known as 588642 100N, 50006858864201001, 6858864201001.00.

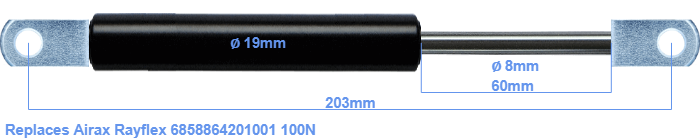

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 60 mm. The total length of this replacement gas spring is 203 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 165 mm. The force of this replacement is 100 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This a gas spring with the brand HAHN. The force (100 N) and dimensions are almost entirely identical to the original.
