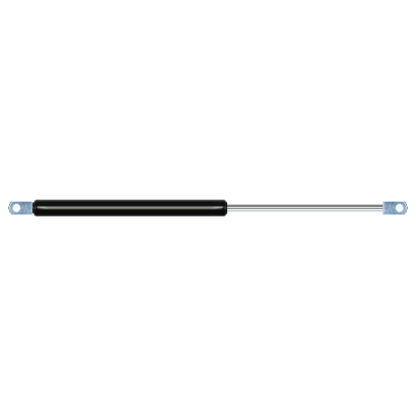

Replacement for Airax Rayflex 6858864102001 200N

$54.26




Replacement gas spring for the Airax Rayflex 6858864102001 200 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588641 200N, 50006858864102001, 6858864102001.00.
    Airax Rayflex 6858864102001
    AR19

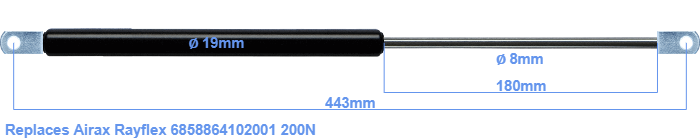

    This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 180 mm. The total length of this gas strut is 443 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 405 millimeter. This replacement gas spring has a force of 200 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a HAHN gas spring. Nevertheless, the dimensions and force are almost entirely equal.
    Category:
    Replacement for Airax Rayflex 6858864102001 200N
