Replacement for Airax Rayflex 6858862506501 650N

$43.69




Replacement gas spring for the Airax Rayflex 6858862506501 650 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 588625 650N, 50006858862506501, 6858862506501.00.
    Airax Rayflex 6858862506501
    AR19

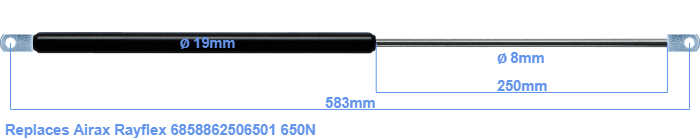

    The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is 583 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. The force of this replacement gas spring is 650 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand HAHN. Nevertheless, the dimensions and force are nearly equal.
